Powering on/off the H500
Hold the power button on the right side of the device for three seconds to power on the device.
Tap the power button to wake the screen when the device is online.
Hold the power button on the right side of the device for three seconds to power off the device.
Connecting to the H500
- From the home screen, click the 'WiFi Info' button.
- Three pages will be displayed: Primary Network (2.4GHz), Primary Network (5GHz), and Guest Network. Each network name (SSID) and the password will be displayed on its own page and can be navigated to by swiping left or right.
- All network names (SSID) will follow the convention ATH-HOTSPOT-X-Y where X is the hotspot number and Y is the network type (2.4, or 5). The guest network should not be broadcast but the page will still be visible.
- On your mobile device or laptop connect to the desired network and enter the password displayed on the corresponding WiFi Info page.
- We recommend connecting to the 5GHz network when possible and then the 2.4GHz network.
Additional Resources

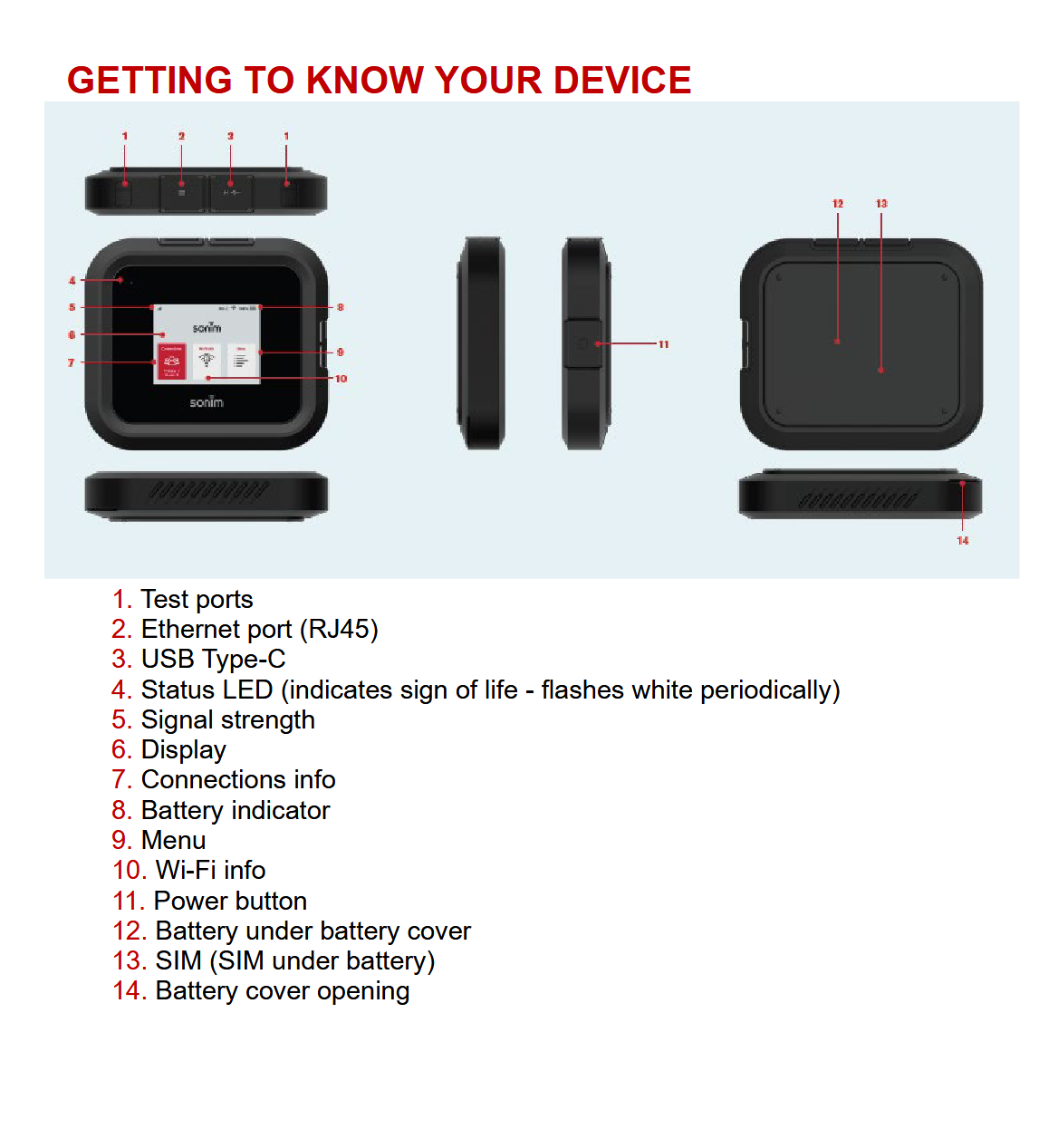

Sonim H500 5G Quick Start Guide
